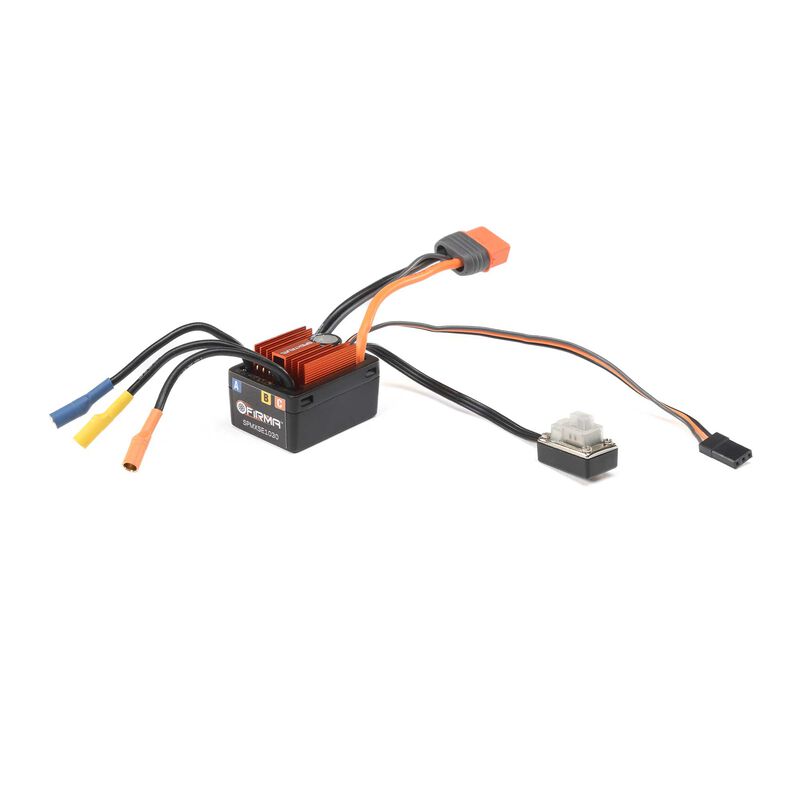

Spektrum Firma 30A Brushless Smart ESC: Minis - SPMXSE1030
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!
Key Features
- Designed for the Losi Mini-T, Mini-B, Mini Drag, and Mini JRX2
In The Box
- (1) Spektrum™ Firma™ 30A Brushless Smart ESC
- (1) Product Manual
Needed to Complete
- (1) Spektrum™ Surface Receiver
- (1) Spektrum Motor
- (1) Spektrum Smart Technology LiPo Battery
- (1) Spektrum Transmitter
Firma 30A Brushless Smart ESC Overview
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required.
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Firma 30A Brushless Smart ESC Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backward compatible with EC™ connectors
- Limited 1-year warranty
Produkt Eigenschaften
| Amperage | 30A |
| BEC | Ja |
| BEC Continous Current | 3A |
| BEC Type | Linear mode |
| BEC Voltage | 6V / 7.4V |
| Bremsen | Ja |
| Input Voltage | 2S - 3S LiPo | 5C - 9C NiMH |
| Maximum Burst Current | 100A |
| Maximum Continuous Current | 30A |
| Motor Output Lead | 3.5mm Female Bullet |
| Motortyp | Brushless |
| Niederspannungsabschaltung Programmierbar | Ja |
| Product Height | 0.63" (16 mm) |
| Product Length | 1.42" (36 mm) |
| Product Weight | 38g |
| Product Width | 1.1" (28 mm) |
| Programmierbar | Ja |
| Rückwärts | Ja |
| Technology | Smart |
| Überladeschutz | Ja |
| Verbindertyp | IC3 |
| Vorne | Ja |
| Wasserabweisend | Ja |
