Arrma TYPHON 6S 4WD BLX 1/8 Buggy RTR Black - ARA8606V5
Designed fast and designed tough, the ARRMA® TYPHON™ 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC, stronger servo and more.
Key Features
- Aktualisiert mit Spektrum ™ -Komponenten und Smart-kompatibel
- 113+km/h bei Einsatz eines 6S LiPos und Verwendung des beiliegenden optionalen Ritzels unter optimalen Bedingungen erreichbar
- EXB kompatible Strebe vorne
- Größere wasserdichte Empfänger Box
- Betriebsbereit - Installieren Sie einfach einen aufgeladenen 4-Zellen- oder 6-Zellen-LiPo-Akku Ihrer Wahl
In The Box
- ARRMA® TYPHON™ 6S BLX 1/8 Speed Buggy 4WD RTR
- Spektrum™ Firma™ 150A Smart 4S/6S Regler (installiert)
- Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor (installiert)
- Spektrum ™ S652 Metallgetriebe Digital Servo (installiert)
- Spektrum ™ SR315 3-Channel Dual Protokoll Empfänger (installiert)
- Spektrum ™ SLT3™ 2.4GHz 3-Kanal Sender
- Bedienungsanleitung
Needed to Complete
- 4S oder 6S LiPo Akku
- LiPo Ladegerät
- LiPo Ladebeutel
- (4) AA Batterien
Introduction

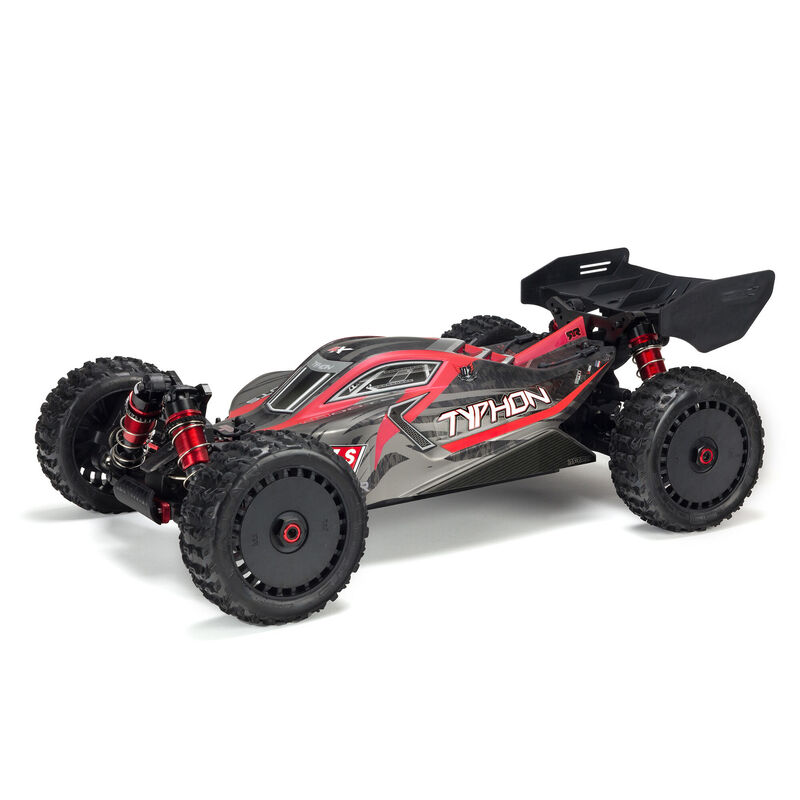

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON™ 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum™ 3-channel radio system and Firma™ brushless electronics, it's all set for fast action on all terrain, in all conditions.
Features
- Ready-to-run
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC
- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
- EXB compatible front brace
- Stronger chassis design
- Large volume waterproof* receiver box
- +1mm wheel hexes
- Anodized aluminum chassis
- Strong composite chassis side pods
- Strong front and rear composite chassis brace
- High-speed low downforce wing and strong mounts
- Oil-filled adjustable shocks
- Aluminum shock caps and protectors
- Black-anodized aluminum front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminum servo saver
- Never-pop ball ends
- 4-Bolt center diff removal
- Easy-access sliding motor mount for quick motor removal
- Super-durable wheel hubs for increased strength
- Low drag wheels
- Multi-terrain dBoots® KATAR™ tires
- Forged composite style matte paint scheme
- IC5® connectors (EC5™ compatible)
- 2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual
Overview

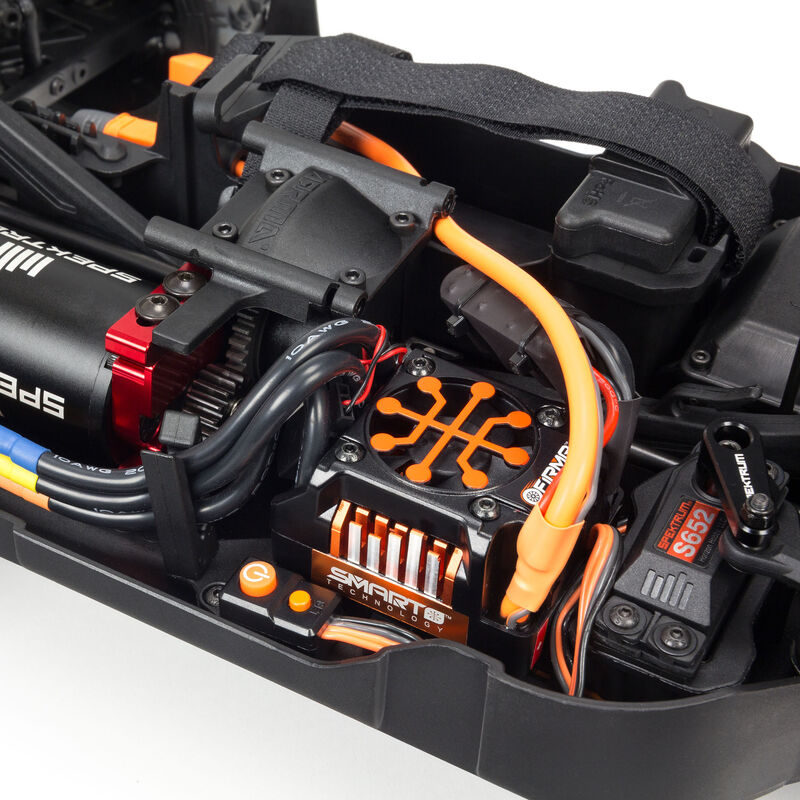

ARRMA® engineers have updated the TYPHON™ 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

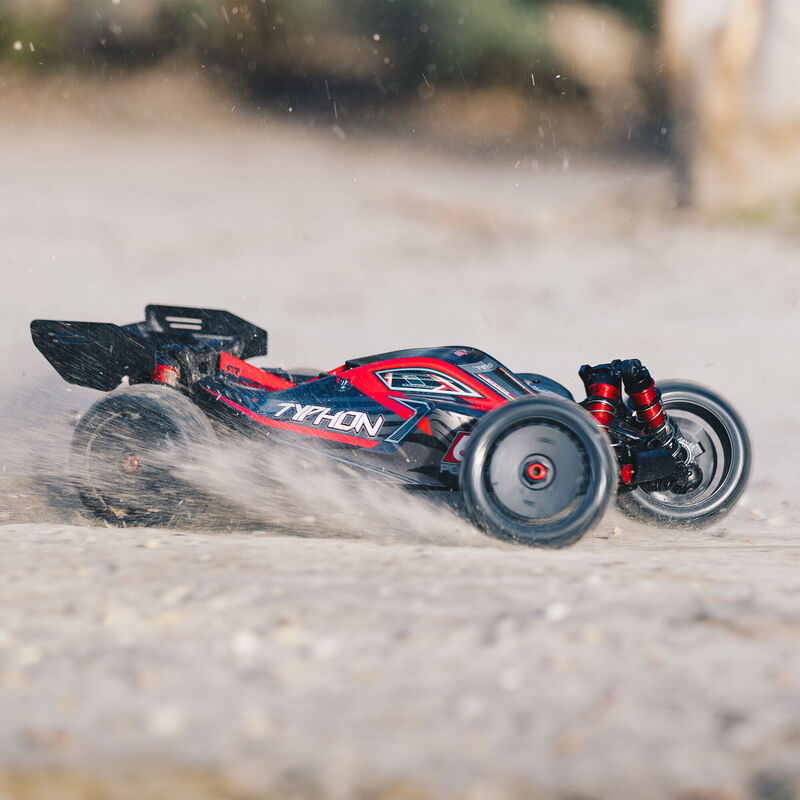

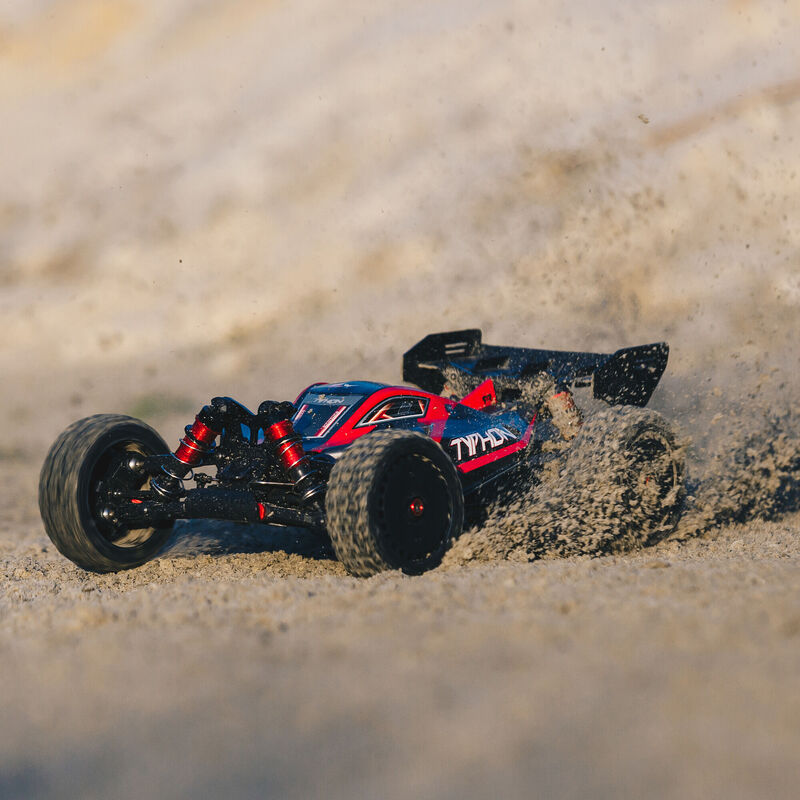

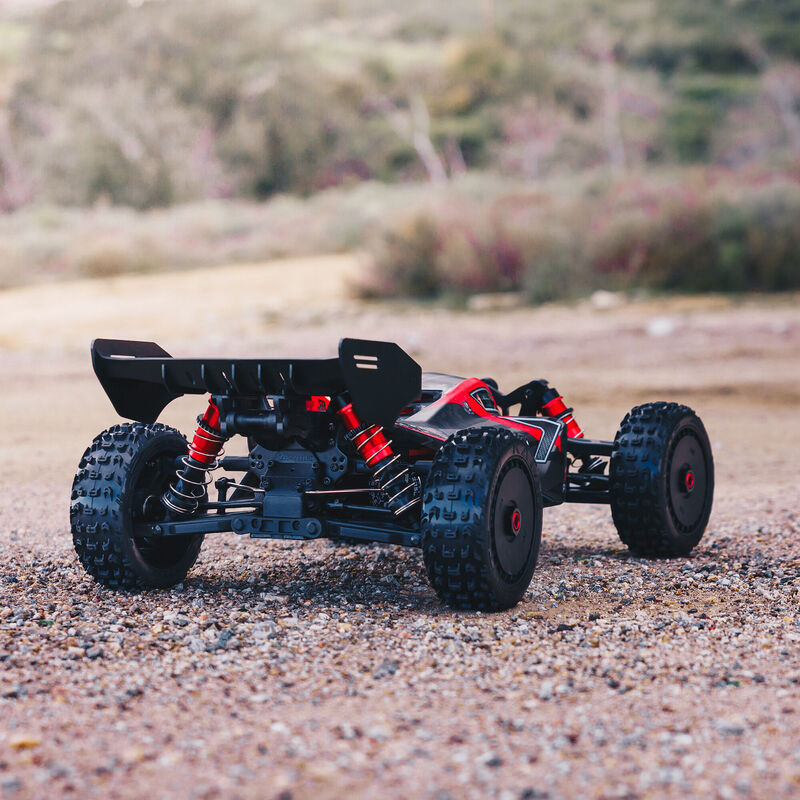

The TYPHON™ 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

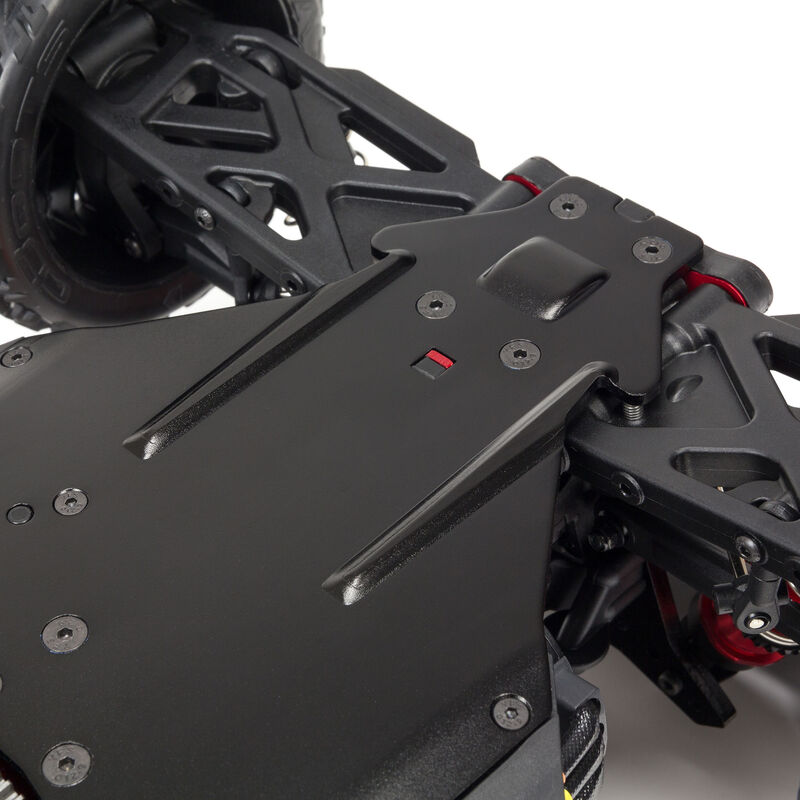

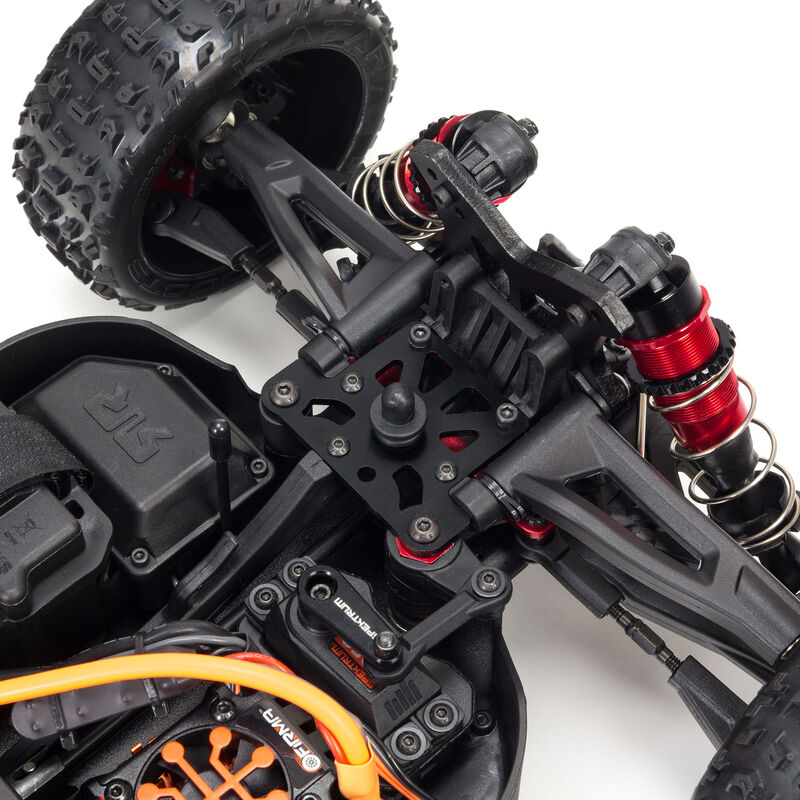

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

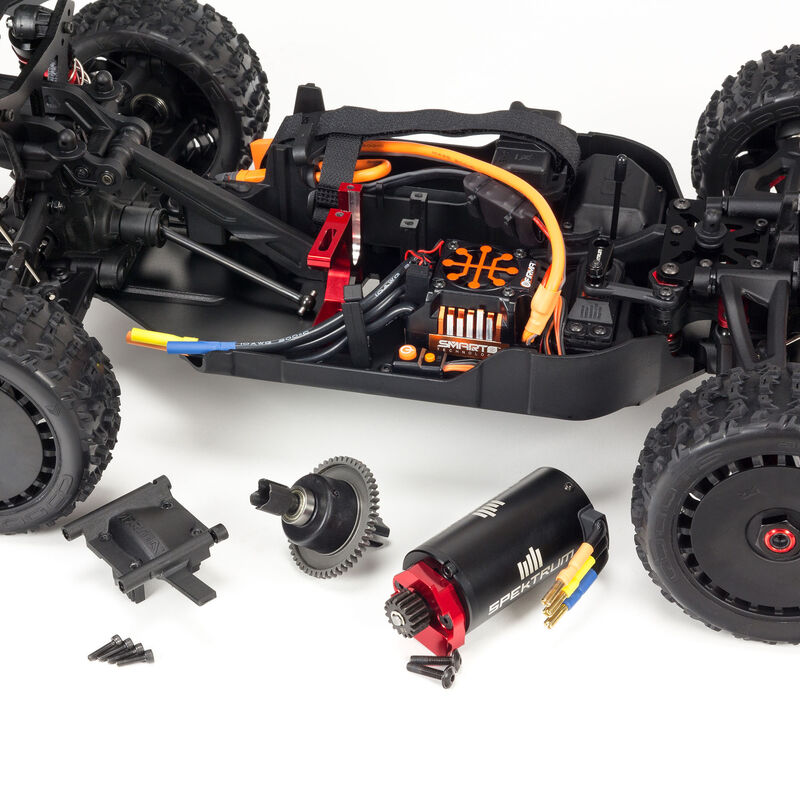

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

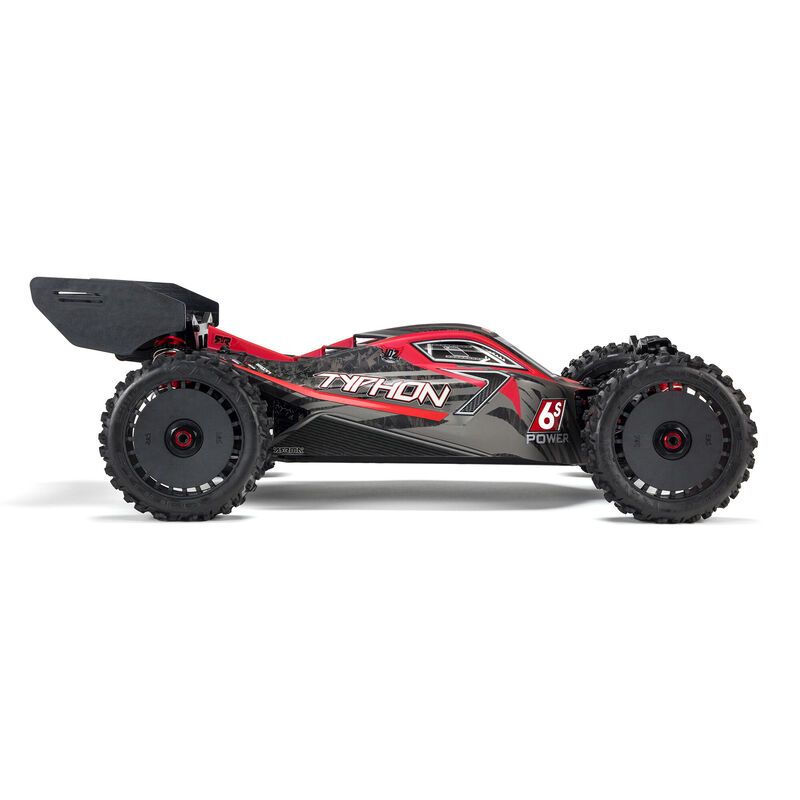

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR™ tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.
Produkt Eigenschaften
Akku |
Separat erhältlich |
Antriebsstrang |
4WD |
Approximate Assembly Time |
No assembly required |
Ball Bearings |
Full set |
Body |
Painted, decaled and trimmed |
Brakes |
User programmable |
Chassis |
0.12" (3mm) 6061-T6 aluminum |
Differential |
Three, gear type |
Drive Type |
Forward/Brake/Reverse |
Fahrzeugtyp |
Buggy |
Fertigstellungsgrad |
Ready-To-Run |
Final Drive Ratio |
10.31 |
Front Shock Spring Rate |
75.5gf/mm |
Front Track |
12.2" (310mm) |
Gear Pitch |
1.0MOD |
Grösse Felgenmitnehmer |
17mm |
Internal Gear Ratio |
3.3 |
Ladegerät |
Separat erhältlich |
LiPo Compatibility |
6S, 4S |
Maßstab |
1:8 |
Max Battery Dimensions |
6S Soft Pack ONLY |
Motor Size |
4074 |
Motortyp |
Brushless |
Power System |
6S |
Power Typ |
Elektrisch |
Product Height |
7.48" (190 mm) |
Product Length |
20.08" (510 mm) |
Product Weight |
7.52lbs (3.42kg) |
Product Width |
12.22" (310 mm) |
Radio |
Included |
Rear Shock Spring Rate |
56.6gf/mm |
Rear Track |
12.2" (310mm) |
Ritzel |
16Z |
Servos |
Included |
Shock Type |
Aluminum body oil-filled adjustable |
Speed Control |
Included |
Spur Gear |
50T |
Suspension |
Independent |
Technology |
Smart, Dual Protocol RX (DSMR/SLT) |
Tire Tread |
dBoots KATAR B |
Tire Type |
Multi-surface |
Top Speed |
70+ |
Verbindertyp |
IC5 |
Wasserabweisend |
Ja |
Wheel Type |
1/8 scale Buggy |
Wheel Width |
1.7" (44mm) |
Wheelbase |
12.91" (328mm) |
