This ﾓAﾔ version of SPMXAE1100 features wire lead lengths, connectors and programming specifically for the E-flite F-16 Falcon 80mm EDF (EFL87850) and other models.
In The Box

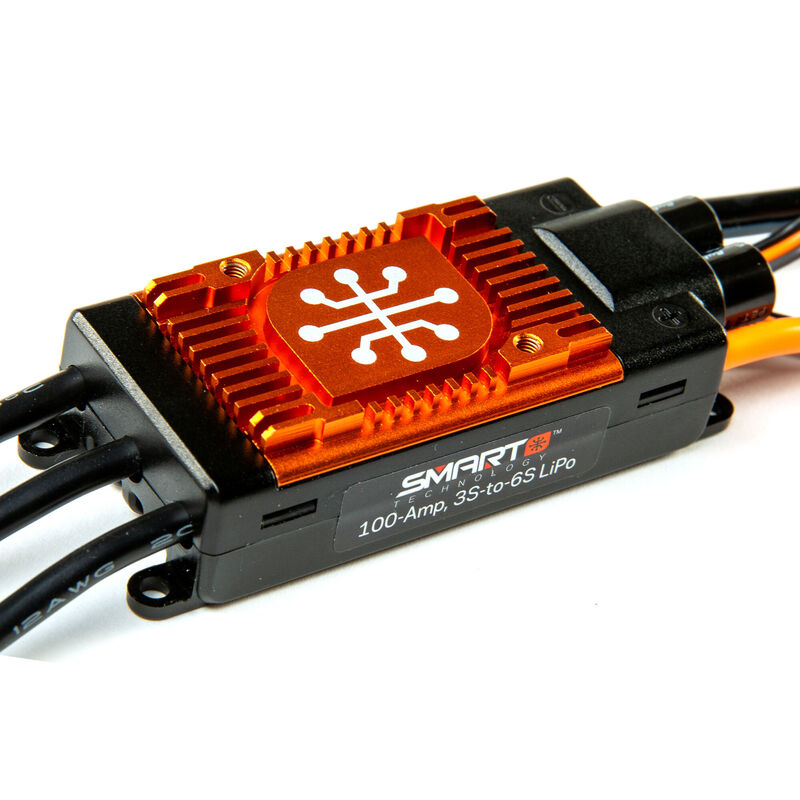

(1) Spektrumﾙ Avianﾙ Smart ESC for the E-flite F-16 Falcon 80mm EDF (EFL87850)
(1) Spektrum Smart sticker sheet
(1) Product Manual
SPMXAE1100A Specs
Motor Output Leads: 5.12 in (130mm) 12AWG with 4.0mm bullet connector
Battery Input Leads: 15.75 in (400mm) 12AWG with IC5 connector
Throttle Lead: 17.71 in (450mm) standard gauge with servo connector
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Throttle stick programming
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrumﾙ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install ﾗ no soldering required
Rugged plastic case
Heat dissipating design
Tabs included for a hard mount
Aluminum heat sink for high efficiency
Adjustable high-power BEC
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant ICﾙ connectors, backwards compatible with ECﾙ connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrumﾙ Smart ecosystem, Avianﾙ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics ﾗ together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before ﾗ without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
