Spektrum FC6350HX Flybarless Helicopter Control System - SPMFC6350HX
The Spektrum™ FC6350HX flight controller is the heart of your radio control helicopter experience. It is ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. The flight controller is Smart ESC ready, and takes full advantage of forward programming from your Spektrum compatible transmitter.
Key Features
- Supports two DSMX remote receivers
- User configurable SAFE Panic Recovery and Stability Flight Modes
- Easy to use Forward Programming for setup and gain adjustments from compatible Spektrum transmitters
- Smart Technology ready for Smart ESC and Smart Battery telemetry
- Supports DX, iX, and NX series transmitters
- Supports Digital and Analog servos
- 70Hz to 560Hz Adjustable Servo Frequency (760μs and 1520μs center)

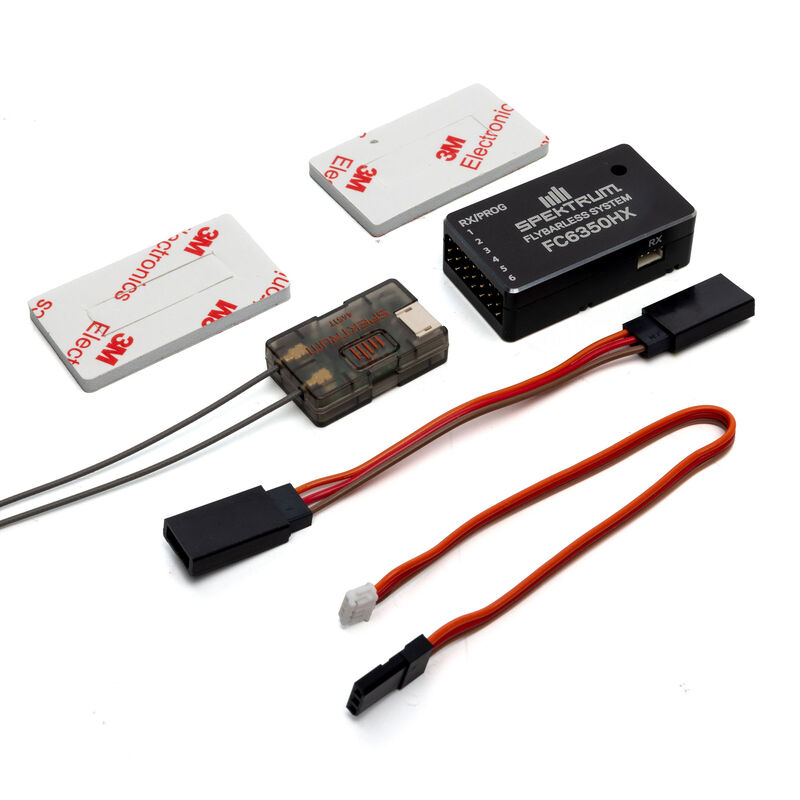

In The Box
- (1) Spektrum FC6350HX Flight Controller
- (1) Spektrum SPM4651T SRXL2™ Telemetry Receiver
- (1) User Manual
- (1) Decal Sheet
- (2) 3M Adhesive Mounting Pad
Spektrum FC6350HX Flybarless Helicopter Control System Overview
As a 3-axis stability system for your flybarless helicopter, the FC6350HX can be set up and tuned using your Spektrum transmitter as a forward programming interface. All the flight controller settings can be programmed through your transmitter. Using AS3X and SAFE technology, the FC6350HX offers self-leveling beginner modes, as well as pro-level flight performance.
Add a Spektrum Smart ESC to your heli to expand integrated features without extra wires or sensors. When the flight controller detects a Smart ESC connection, it feeds a telemetry stream to the transmitter, putting live battery data power in your hands.
The FC6350HX can also be programmed, updated, and backed up using the Spektrum USB Programmer and PC programmer application.
Produkt Eigenschaften
| Application |
Heli |
| Band |
2.4GHz |
| Bind Method |
Bind Button |
| Datenanschluss |
Ja |
| Failsafe |
Ja |
| Hersteller # |
SPMFC6350HX |
| Input Voltage |
4.8 – 8.4V |
| Kanäle |
6 |
| Kompatibel mit Flight Log |
Ja |
| Modulation |
DSMX/DSM2 |
| Product Height |
0.94" (24 mm) |
| Product Length |
1.67" (42 mm) |
| Product Weight |
.46 oz (13g) |
| Product Width |
0.54" (14 mm) |
| Programmierbar |
Ja |
| Range |
Full |
| Resolution |
2048 |
| Serial Out |
SRXL2 |
| Technology |
AS3X and SAFE |
| Telemetrie |
Ja |
| Telemetry Range |
Full |
| Wasserabweisend |
Nein |
