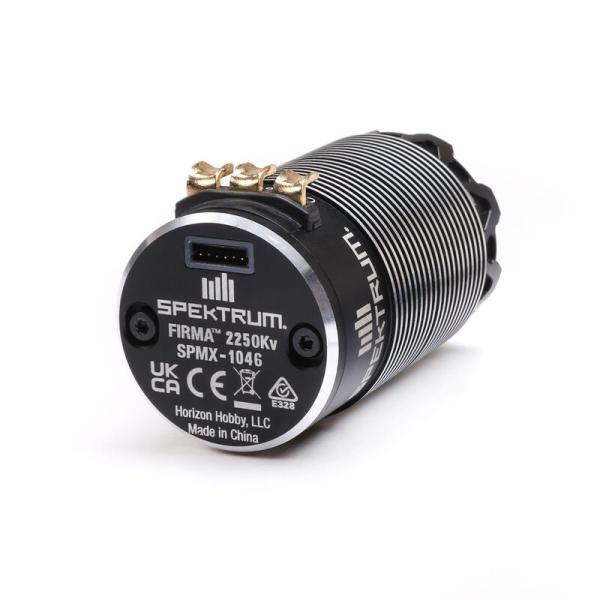

Spektrum Firma 4274 2250Kv 4-Pole Sensored Brushless Motor: 5mm - SPMX-1046
Key Features
- Designed for SPMXSE2130S - Firma 130A Black Edition Sensored Brushless Smart ESC
In The Box
- (1) Spektrum Firma 4274 2250Kv 4-Pole Sensored Brushless Motor
- (1) Product Manual
Spektrum Firma 4274 2250Kv Sensored Brushless Motor Overview
The Spektrum™ Firma™ 2250Kv Sensored Brushless Motor is the perfect option for 1/8th scale buggies or truggies with a 3S-6S LiPo. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation. Perfectly matched for the Firma 130 Smart Sensored ESC (SPMXSE2130S).
Spektrum Firma 4274 2250Kv Motor Features
- Sensored design allows fine control at all speeds
- Perfect upgrade for 1/8th scale racers and bashers
- High efficiency design
- 3S-6S LiPo power capable
- High-quality 4-pole sintered rotor
- High-quality construction with precision ball bearings and hardened steel 5mm shaft
Produkt Eigenschaften
| Application |
1/8 Truggy and Buggy (Recommended with SPMXSE2130S ESC only) |
| Buchse oder Kugellager |
Lager |
| Input Voltage |
3S - 6S |
| Motor Ausgangsanschluss |
Lötlaschen |
| Motor Size |
4274 |
| Motortyp |
Brushless |
| Outer Diameter |
1.6" (41 mm) |
| Pole |
4 |
| Product Length |
2.9" (74 mm) |
| Product Weight |
12.7 oz (360g) |
| Recommended Speed Control |
SPMXSE2130S |
| RPM/Volt (Kv) |
2250Kv |
| Shaft Diameter |
0.19" (5 mm) |
| Shaft Length |
0.73" (19 mm) |
