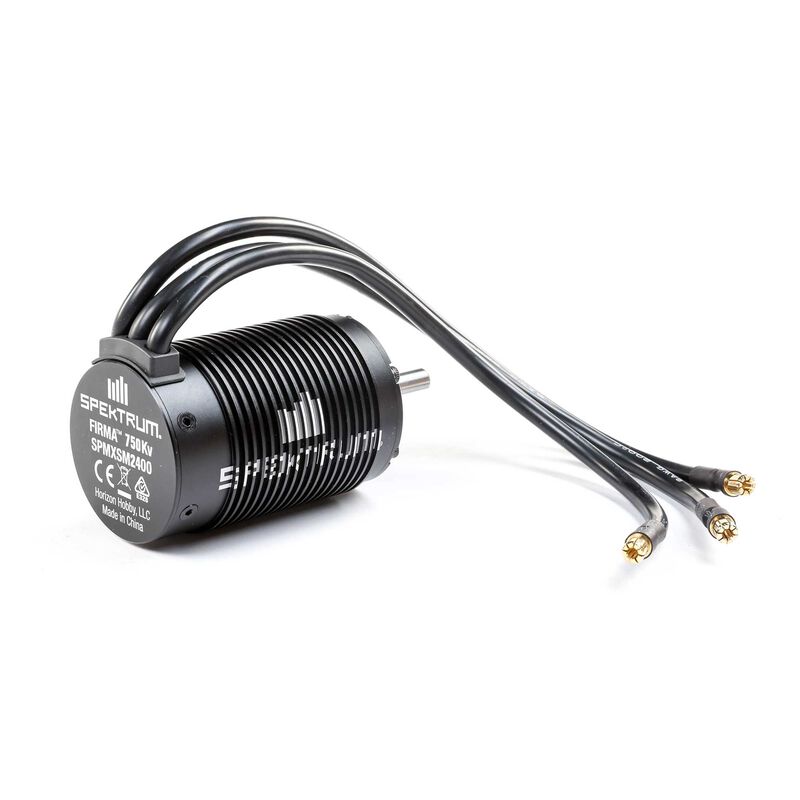

Spektrum Firma 5687 750kv 4-pole Brushless motor - SPMXSM2400

Spektrum Firma 5687 750kv 4-pole Brushless motor - SPMXSM2400

Key Features

• Alloy steel 5mm Output Shaft
• 4S LiPo Capable
• Low Cog 4-Pole 8-Magnet Rotor Design

In The Box

Needed to Complete

• Firma 5687 - 750Kv 4-Pole Brushless Motor

  Overview

  The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

  Features

  • Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
  • High efficiency design
  • 4S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 5mm shaft



  Produkt Eigenschaften

  Application	1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup
  Connector Type	6.5mm Bullet
  Efficiency	87%
  Input Voltage	12 25.2V
  Maximum Continuous Current	80A
  Motor Design	Inrunner
  Motor Size	5687
  Motor Type	Brushless - Sensorless
  Number of Poles	4
  Outer Diameter	2.2" (56 mm)
  Output	3950W
  Product Length	3.43" (87 mm)
  Product Weight	2.08lbs (947g)
  RPM/Volt (Kv)	750Kv
  Shaft Diameter	0.196" (5 mm)
