Overview

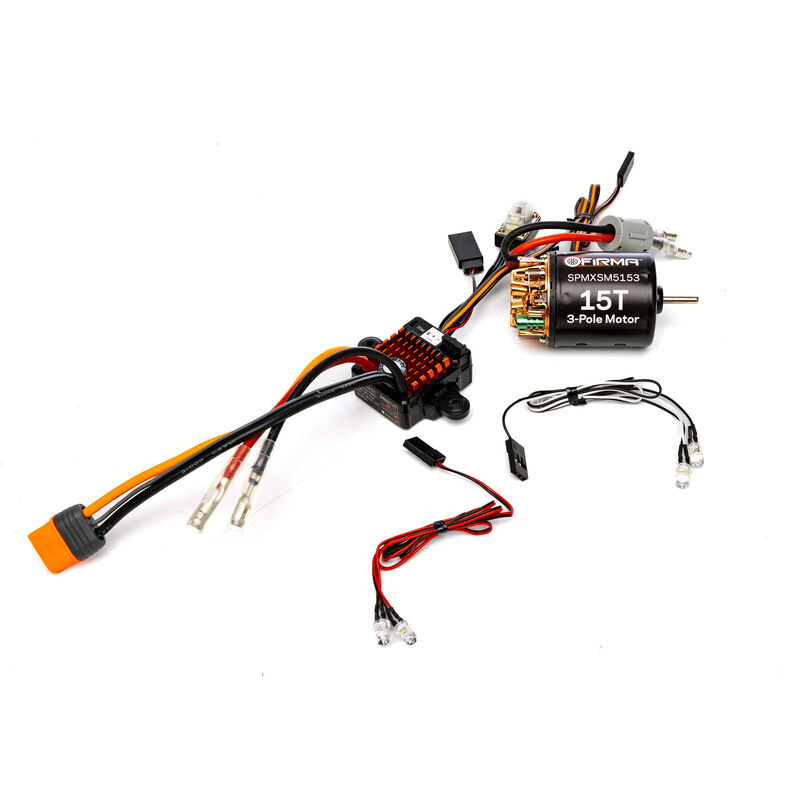

The Spektrum™ Firma 70 amp Brushed Smart ESC and motor combo is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers and bashers.
This ESC and Motor Combo is an excellent choice to complete your 1/10th scale on-road and off-road 2WD racing models running 2S LiPo power. Plenty of speed and tunability for carpet, drift, or asphalt on road racing as with the durability needed for 1/10th off-road racing and bashing.
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
INCLUDES SPEKTRUM 15 TURN BRUSHED REBUILDABLE MOTOR WITH ADJUSTABLE TIMING
The Spektrum Firma 3-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th Racers and Bashers. Featuring fully rebuildable design, impressive high rpm speed and control, and excellent efficiency.
- Adjustable timing for clockwise and counterclockwise motor rotation
- 540 can size – perfect upgrade for most 1/10th scale
- Pre-shaped curved face brushes – No break-in period required!
- Wires and 3.5mm bullets installed – No soldering required!
- Ball bearing supported rotor
Produkt Eigenschaften
| Maximum Burst Current |
200A |
| Maximum Continuous Current |
70A |
| Motor Type |
Brushed |
| Speed Control |
Included |
| Low-Voltage Cutoff Programmable |
Yes |
| Number of Poles |
3 |
| Product Weight |
1.76 oz (50 g) |
| Water-Resistant |
Yes |
| BEC Continous Current |
4A (Shared Between Receiver and Aux Light Outputs) |
| Auto Cutoff |
Yes |
| Product Width |
1.18" (30 mm) |
| Technology |
Smart |
| Connector Type |
IC3,3.5mm Bullet |
| Product Length |
1.41" (36 mm) |
| Forward |
Yes |
| Reverse |
Yes |
| BEC |
Yes |
| BEC Voltage |
6V / 7.4V User Selectable |
| Amperage |
70A |
| Turns |
15T |
| Input Voltage |
2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd |
| Motor Limit |
540 / 550 Size Brushed Motors |
| Product Height |
0.71" (18 mm) |
| Programmable |
Yes |
| Adjustable Timing |
No |
| Brakes |
Integrated with ESC |
