TLR 22 5 DC ELITE Race Kit: 1:10 2WD Dirt-Clay RC-Auto - TLR03022
In The Box
- (1) 22 5.0 DC ELITE Kit
- (1) 22™ 5.0 Cab Forward Body
- (1) Product Manual
Needed to Complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) Steering Servo Mount (TLR331036 Recommended)
- (1) 2S “Shorty” LiPo Battery
- (1) LiPo Battery Charger
- (1) 48 Pitch Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Wheels
- (4) Tires
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
Features
- Pro Level Ready
- Carbon Fiber Options Included
- Aluminum Options Included

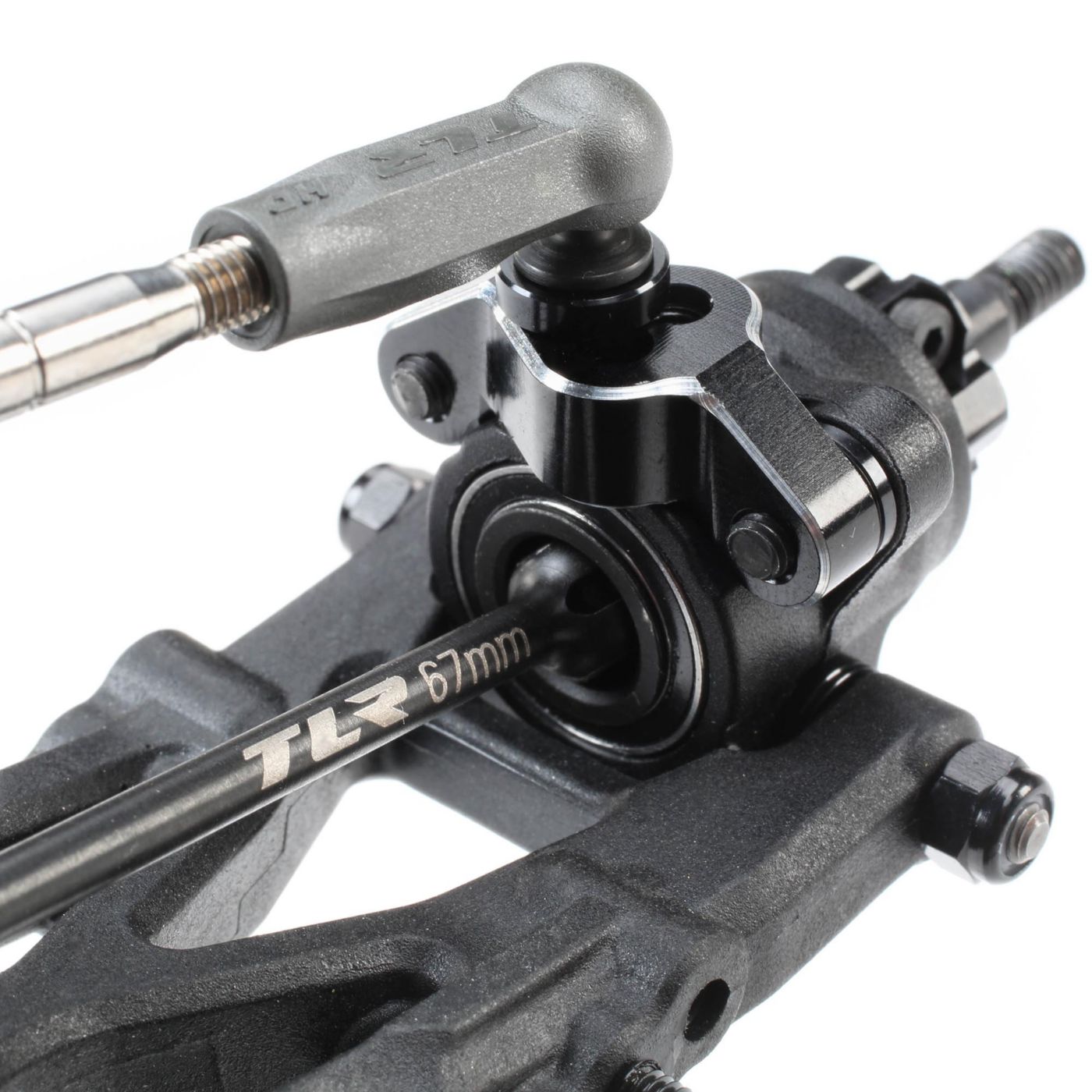

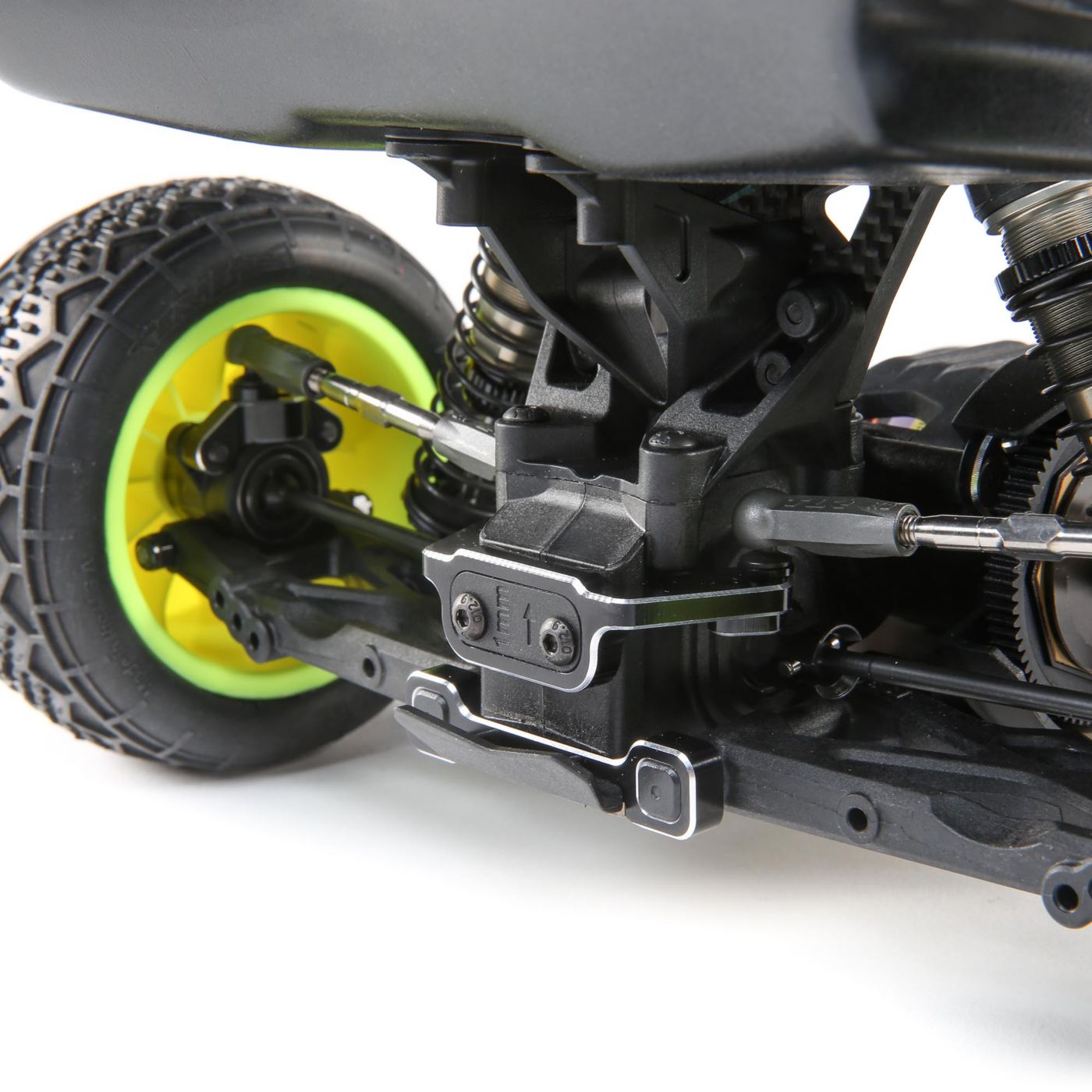

- New Adjustable Rear Hub and Pivots
- Titanium Turnbuckles Included
- Revamped steering geometry
- Super Heavy Duty Slipper (SHDS)
- Laydown transmission configuration
- Stiffezel suspension components
- Fully Updated Differential
- Built-In Motor Fan Mount
- Lightweight body

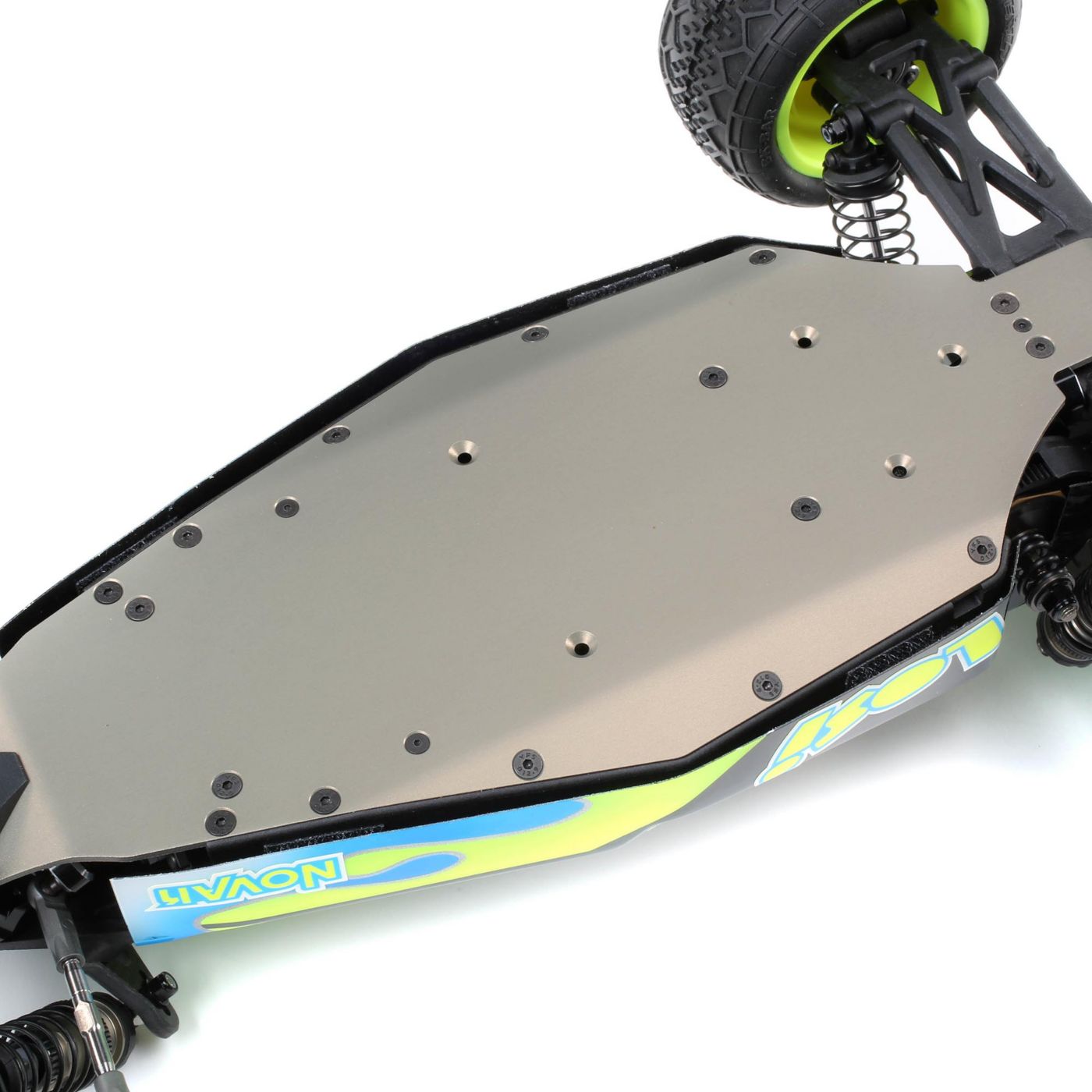

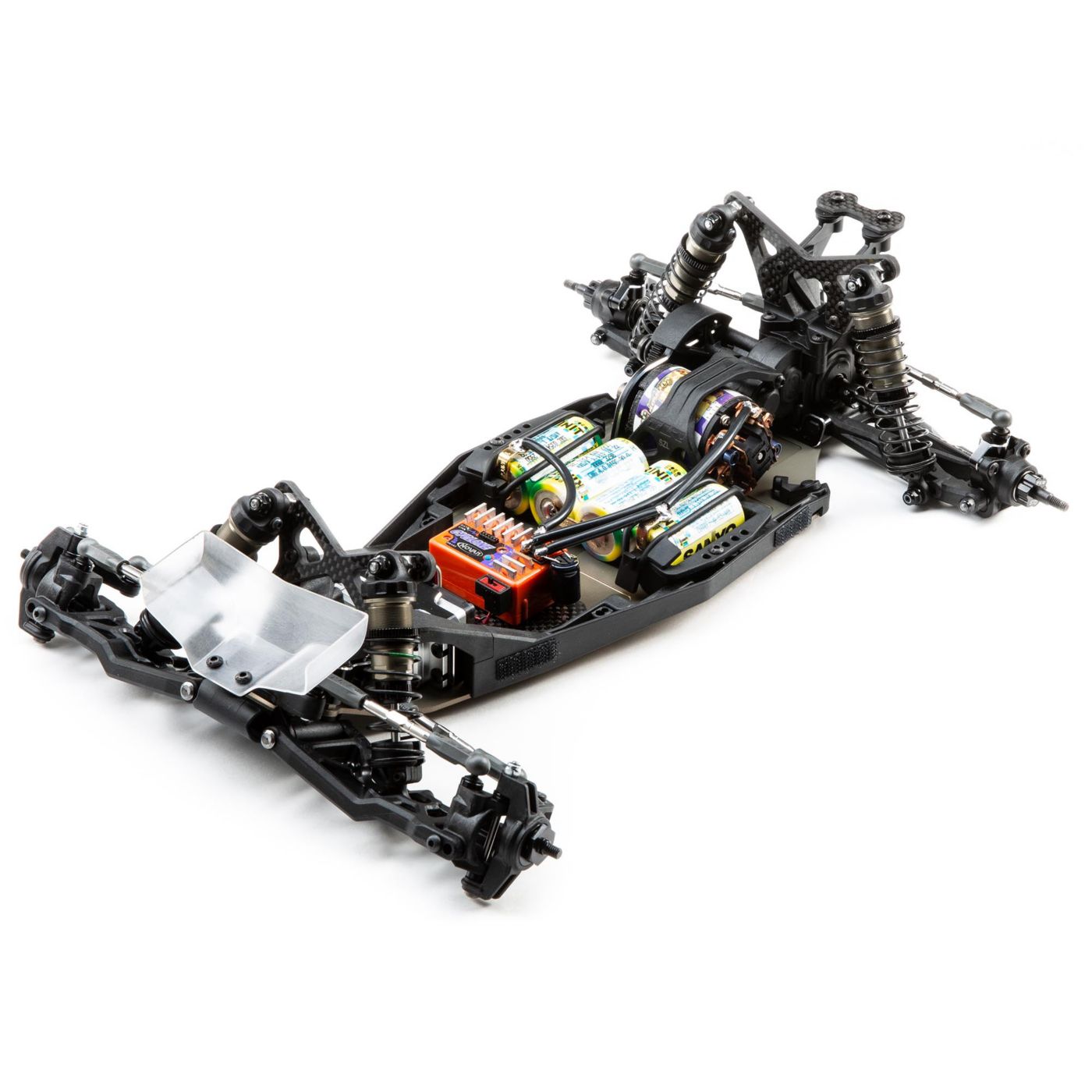

- 2.0 Milled aluminum chassis
- Gen3 12mm big-bore shocks
- Front Roll Center Adjustment
- New Front Camber Block and Battery Hold Down
- Ballast tuning options (ballast sold separately)
Overview
The 22 5.0 has proven itself as the next evolution of the 22 2WD buggy platform. Now the 22 5.0 DC ELITE kit gives drivers a professional grade, full team-level kit all in one box! Optimized for dirt and clay tracks, the ELITE kit features fully adjustable rear pivots, adjustable height rear hubs, carbon fiber option parts throughout, and all the aluminum parts have been changed to a sharp black with silver edges to pop against the hard anodized chassis and shock bodies. Building on the improvements to the 22 5.0, the ELITE kit is significantly easier to drive while still giving the car more mid-corning steering with the revised steering geometry, smoother G3 shocks, and the optimized flex of the 2mm chassis plate. Designed to win straight out of the box, the 22 5.0 DC ELITE maximizes performance and is podium ready.
Produkt Eigenschaften
| Akku |
Separat erhältlich |
| Antriebsstrang |
2-Rad Antrieb |
| Approximate Assembly Time |
3-5 Hours |
| Ball Bearings |
Full set, rubber sealed |
| Body |
Cab forward, 0.03" (0.7mm) thick |
| Chassis |
7075-T6 Aluminum Milled Plate 0.08" (2mm) thick |
| Differential |
Ball type |
| Empfänger |
Separat erhältlich |
| Fahrzeugtyp |
Buggy |
| Fertigstellungsgrad |
Bausatz |
| Front Track |
9.8 in (249mm) |
| Gear Pitch |
48-Pitch |
| Internal Gear Ratio |
2.43:1 |
| Ladegerät |
Separat erhältlich |
| Maßstab |
1:10 |
| Material Buchse |
Metall |
| Max Battery Dimensions |
5.5 x 1.8 x 0.96" (139.7 x 46 x 24.5mm) |
| Power Typ |
Elektrisch |
| Product Height |
5.8" (148mm) |
| Product Length |
15" (382mm) |
| Product Width |
9.8" (250mm) |
| Rear Track |
9.8 in (249mm) |
| Regler |
Separat erhältlich |
| Shock Type |
Oil filled 12mm Big Bore |
| Suspension |
Stiffezel Front Suspension Arms, Soft Rear Suspension Arms |
| Wasserabweisend |
Ja |
| Wheelbase |
11" (280mm) |
